Summary Case Study
Secure Storage Facility
Dali, Cyprus
Project value €1.4m

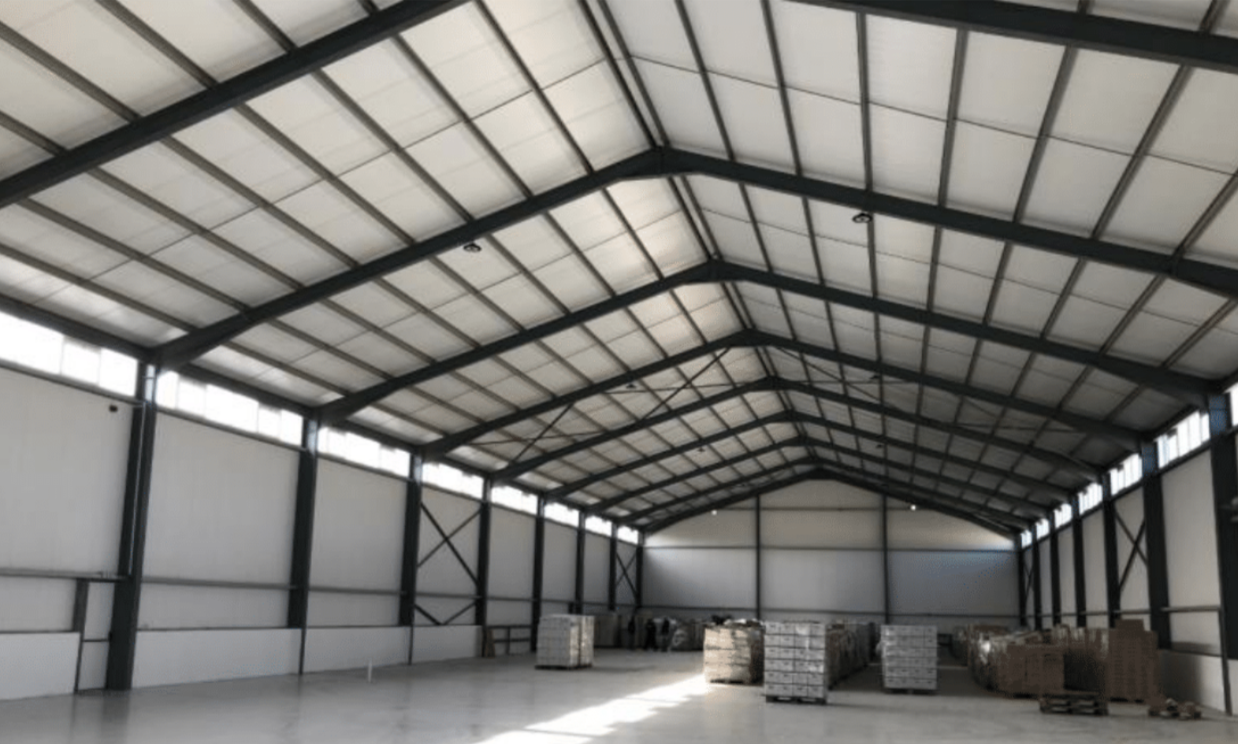

6,000m²secure archive storage facility.
CMDA and ESFR sprinkler systems to provide protection of archive, including In-Rack Sprinklers.
FM Global diesel driven fire pump, double walled diesel storage tank. Arranged as NFPA 20.
Hose reels in cabinets with distribution pipework system.
Below ground pump room plus chamber to house 450m3 sprinkler water tank.
100,000ft 3man-up racking and order-picker trucks.
Electrical BS 7671: 2018 installation to support all building services.
Fire detection system-BS 5839-1: 2017 including aspirated smoke detection, smoke heads, heat detection and call points.
CCTV-BSEN 50132 Grade 3 system.
Intruder-BSEN 50131 Grade 3 system.
Access Control–IM security protocol Grade 3 system.
Perimeter security fencing with access-controlled pedestrian and vehicle gates.
Computer hardware, server, PC's, cabinet, monitors. Structured cabling.
On-site management throughout the project
Our Role:
The company provided the complete design, project management, procurement, cost management and site management for the whole project scope.
Challenges & Collaboration:
The site sits within a seismic zone and therefore all construction, installation and racking calculations required design within EN 1998-1 (2004): Eurocode 8.
This region was a new market for the company and procurement required finding suitable contractors and material suppliers compliant with NFPA and the client standards. Most goods are imported to Cyprus so shipping too needed to be strategically programmed. Installation of an ESFR high-hazard sprinkler system in a storage environment was additionally a country first.
Commitment to Sustainability and the Environment:
The company deliver design solutions based on the cornerstone of sustainability, environmental integrity, economic viability and social well-being.
